Ideamaker Infill Movement

Discussions about ideaMaker and other printing software.
hovig_p
Posts: 26
Joined: Wed Jan 25, 2017 4:48 pm
Location: Toronto

Ideamaker Infill Movement

Postby hovig_p » Sun Feb 24, 2019 4:06 pm

Hey Everyone

The quality of Ideamaker is fantastic.

The only issue/question I have is why does the infill not print in one continuous motion like the inner and outer shells?

It changes position multiple times on every layer. Moves here, moves there, comes back, moves again trying to be look fancy. Lol!! Then without using z-hop the nozzle grinds against previously extruded infill.

Must be a better way to do this?

User avatar
ocelot27
Posts: 41
Joined: Sat Feb 02, 2019 4:39 pm
Location: Malvern, PA

Re: Ideamaker Infill Movement

Postby ocelot27 » Sun Feb 24, 2019 4:19 pm

Usually the way infill is printed is calculated to be the fastest with the least and shortest moves - the skipping around may seem silly but it's actually more efficient depending on the model - a square for example should be printed continuously corner to corner.
-john

User avatar
Noren
Posts: 425
Joined: Sat Nov 26, 2016 12:54 am
Location: Borås, Sweden
Contact:

Re: Ideamaker Infill Movement

Postby Noren » Mon Feb 25, 2019 12:05 pm

I you choose rectilinear infill I think you will get what you are after.

hovig_p
Posts: 26
Joined: Wed Jan 25, 2017 4:48 pm
Location: Toronto

Re: Ideamaker Infill Movement

Postby hovig_p » Mon Feb 25, 2019 4:25 pm

Hi Guys

Thanks for the response.

I tried rectilinear infill and look at all the travel moves in the attached. CRAZY!
Attachments

hovig_p
Posts: 26
Joined: Wed Jan 25, 2017 4:48 pm
Location: Toronto

Re: Ideamaker Infill Movement

Postby hovig_p » Mon Feb 25, 2019 4:25 pm

But I must say that at the end of the day it is doing a fantastic job. :-)

hovig_p
Posts: 26
Joined: Wed Jan 25, 2017 4:48 pm
Location: Toronto

Re: Ideamaker Infill Movement

Postby hovig_p » Wed Feb 27, 2019 1:54 am

Anyways guys

My model is 100% infill. I changed the top and bottom solid layers to ‘concentric’ and it reduced the print time by approx 4hrs but the movements stayed them same.

dispensamatic
Posts: 11
Joined: Wed Mar 06, 2019 4:58 am

Re: Ideamaker Infill Movement

Postby dispensamatic » Wed Mar 06, 2019 5:01 am

I hate to revive this thread but i am getting MAJOR travel on a print, absolutely a waste of time, back and forth to print 1mm then over 10" to do another mm and on and on.

M_P
Posts: 11
Joined: Tue Aug 14, 2018 6:56 pm

Re: Ideamaker Infill Movement

Postby M_P » Thu Mar 07, 2019 1:57 pm

I think it would be important to introduce the concentric also for infill movement.

dispensamatic
Posts: 11
Joined: Wed Mar 06, 2019 4:58 am

Re: Ideamaker Infill Movement

Postby dispensamatic » Thu Mar 07, 2019 4:24 pm

https://photos.app.goo.gl/pjXJhNoXeAKDuzQF7

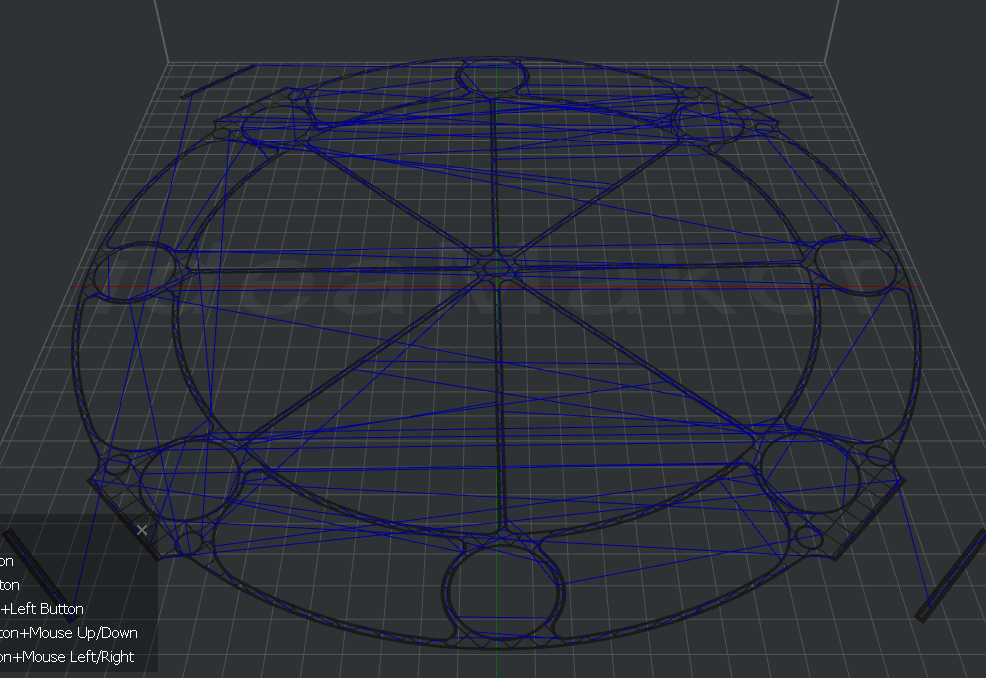

The amount of travel is CRAZY! and this is after i unchecked "don't travel through holes" which was MUCH worse as it would follow the frame around to get to the other side.

User avatar
Vicky@Raise3D
Posts: 4947
Joined: Fri Mar 25, 2016 3:54 am

Re: Ideamaker Infill Movement

Postby Vicky@Raise3D » Fri Mar 08, 2019 2:57 am

dispensamatic wrote:https://photos.app.goo.gl/pjXJhNoXeAKDuzQF7

The amount of travel is CRAZY! and this is after i unchecked "don't travel through holes" which was MUCH worse as it would follow the frame around to get to the other side.


Would you like to share STL, Gcode and Data files of the model you attached in picture?
We want to do some further test to see whether we can improve this or not.

dispensamatic
Posts: 11
Joined: Wed Mar 06, 2019 4:58 am

Re: Ideamaker Infill Movement

Postby dispensamatic » Sat Mar 09, 2019 12:02 am

That would be awesome, where do i send it?

dispensamatic
Posts: 11
Joined: Wed Mar 06, 2019 4:58 am

Re: Ideamaker Infill Movement

Postby dispensamatic » Mon Mar 11, 2019 4:55 am

Wow... This is getting out of control...

User avatar
Vicky@Raise3D
Posts: 4947
Joined: Fri Mar 25, 2016 3:54 am

Re: Ideamaker Infill Movement

Postby Vicky@Raise3D » Mon Mar 11, 2019 6:39 pm

You can compressed the three files to be one zip file and attach it into your reply.

dispensamatic
Posts: 11
Joined: Wed Mar 06, 2019 4:58 am

Re: Ideamaker Infill Movement

Postby dispensamatic » Mon Mar 11, 2019 8:23 pm


dispensamatic
Posts: 11
Joined: Wed Mar 06, 2019 4:58 am

Re: Ideamaker Infill Movement

Postby dispensamatic » Wed Mar 13, 2019 4:06 am

Any updates?

User avatar
Vicky@Raise3D
Posts: 4947
Joined: Fri Mar 25, 2016 3:54 am

Re: Ideamaker Infill Movement

Postby Vicky@Raise3D » Wed Mar 13, 2019 5:10 pm

Try enable "avoid travel through hole" and edit "solid fill pattern" to be "rectilinear". Those might help your issue.
We will keep on optimizing the moving path.

dispensamatic
Posts: 11
Joined: Wed Mar 06, 2019 4:58 am

Re: Ideamaker Infill Movement

Postby dispensamatic » Wed Mar 13, 2019 7:24 pm

Enable "avoid traveling through hole" is MUCH MUCH worse. This causes the same travel start and finish, VIA the skinny parts of the frame, taking MUCH LONGER to print as it goes around instead of straight across.
I will try rectilinear.

User avatar
Vicky@Raise3D
Posts: 4947
Joined: Fri Mar 25, 2016 3:54 am

Re: Ideamaker Infill Movement

Postby Vicky@Raise3D » Thu Mar 14, 2019 7:20 pm

The main function for Avoid Traveling Through Hole is to avoid the chance to move nozzle outside of the model to reduce the oozing filament
left at the outer surface of the model.

dispensamatic
Posts: 11
Joined: Wed Mar 06, 2019 4:58 am

Re: Ideamaker Infill Movement

Postby dispensamatic » Fri Mar 15, 2019 3:42 pm

I found the culprit. "Fill Gaps in SHells" that is why it is traveling all over hell and creation! Why is the slicer not optimized so all functions besides outer and inner shell are accomplished in an area coordinated fashion? This thing is hoping around all over the place.

User avatar
Vicky@Raise3D
Posts: 4947
Joined: Fri Mar 25, 2016 3:54 am

Re: Ideamaker Infill Movement

Postby Vicky@Raise3D » Mon Mar 18, 2019 4:59 pm

The option "Fill Gaps in Shells" is designed for adding infill into the gaps between shells.
We will keep on improving travel movement in future versions.

Thanks for your feedback.
