Double color

Posted: Sun May 10, 2020 5:04 pm
by Michal80
There was a problem printing two colors at the same time. Left exdruder and right exdruder do not overlap on the prepared model. I don't understand why this is happening. Default settings, no problem before.
Image Image Image

Re: Double color

Posted: Mon May 11, 2020 9:56 pm
by Vicky@Raise3D
Which printer you are using? Please check whether you have set either the XY offset on touchscreen or in Printer Settings in ideaMaker.
https://support.raise3d.com/tree.html?cid=15&sid=1008

Re: Double color

Posted: Tue May 12, 2020 4:25 pm
by Michal80
Thanks for the advice, I will calibrate the x-axis, I'll let you know how it went. I don't understand why these settings have changed, the extruder parameters on the Raise PRO 2 printer are never changed

Re: Double color

Posted: Tue May 12, 2020 6:26 pm
by Vicky@Raise3D
Have you changed touchscreen or reset touchscreen recently?

Re: Double color

Posted: Wed May 13, 2020 7:01 pm
by Michal80
I have restored the factory settings of the printer, is this the reason for moving the axis? Do you have any base parameter from which I can start to set the right extruder axis? The offset is +/- 30 mm. I am a beginner Raise user, so here are so many questions :)

Re: Double color

Posted: Wed May 13, 2020 8:42 pm
by Vicky@Raise3D
You can start from 25mm in X and 0 in Y. This guide is for Pro2 series printers. The extruder offset was originally input in touchscreen. When you reset the touchscreen, the values will be changes to 0.
https://support.raise3d.com/ideaMaker/6 ... -1009.html

Re: Double color

Posted: Sun May 17, 2020 7:10 pm
by Michal80

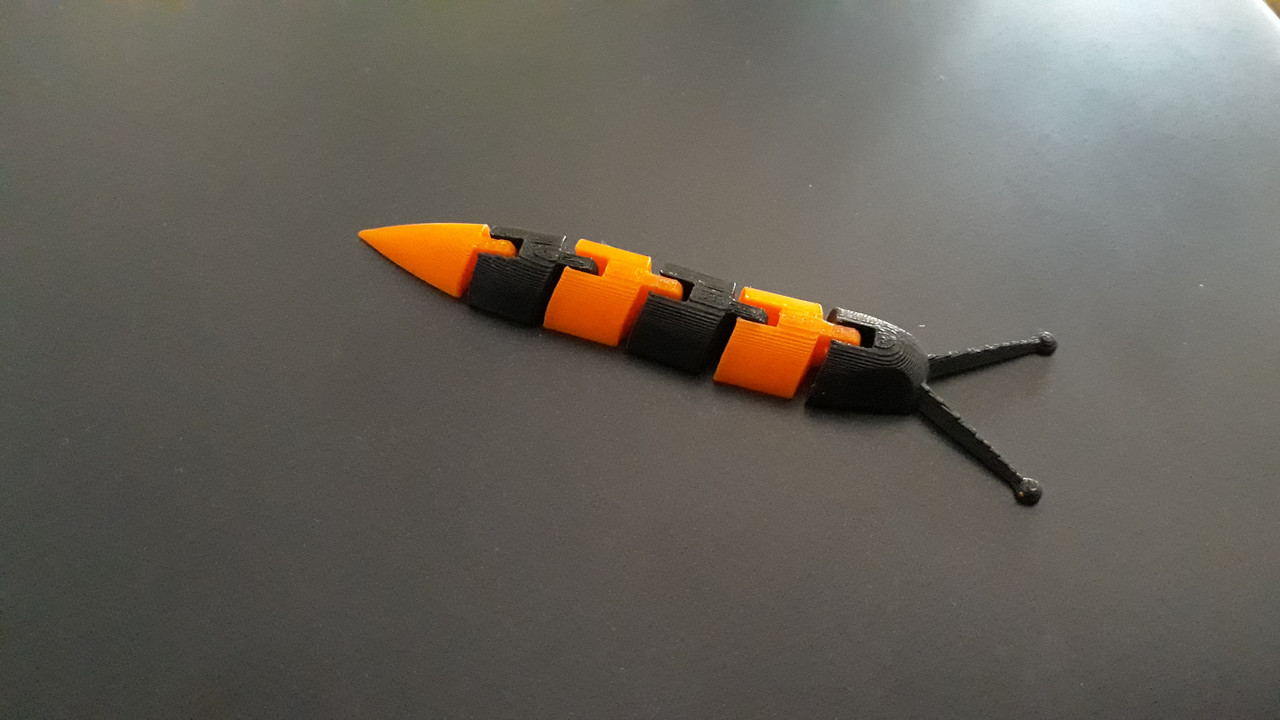

Thank you for your help. Full success :D Image
